Commercial Energy Storage

C&I All-in-one Energy Storage System (BESS)
G-E-Cube series outdoor energy storage cabinet integrates power conversion modules, lithium battery packs, power distribution systems, fire protection systems, dynamic environmental monitoring, and intelligent energy management — all in a single, compact cabinet.
Get A Quote
//Highlights

Features

  • Photovoltaic-energy Storage Integration
  • Space Saving
  • Easy Installation
  • Flexible Expansion
  • Long Lifecycle Compatibility
  • Intelligent Management
  • High efficicy
  • 01

    Photovoltaic-energy Storage Integration

    The system monitors local load power in real time, prioritizes self-consumption of solar generation with surplus stored in batteries, and uses battery storage first when solar power is insufficient.

  • 02

    Space Saving

    It features a door-mounted integrated air conditioner that saves internal space, increases usable capacity for outdoor cabinets, and ensures better structural integrity and waterproof performance.

  • 03

    Easy Installation

    The PCS and battery system integration is completed before shipping, significantly reducing the on-site wiring and joint commissioning costs overseas (in the traditional model, the inverter and battery manufacturers need to install separately).

  • 04

    Flexible Expansion

    With patented virtual synchronous machine technology, the system enables long-distance parallel operation without communication lines and supports seamless grid-to-off-grid switching.

  • 05

    Long Lifecycle Compatibility

    Designed to meet global market demands for full lifecycle reliability, our BESS integrates appearance, structure, and interface to ensure deep compatibility with battery cells’ 10-year warranty cycle (up to 10,000 cycles).

  • 06

    Intelligent Management

    Real-time liquid leakage monitoring reduces on-site maintenance, while local control and cloud platform management with intelligent equalization and instant system alerts ensure battery consistency throughout its entire life cycle.

  • 07

    High Efficiency and Safety

    The intelligent liquid cooling temperature control system minimizes cell temperature differences within the battery pack, ensures consistent thermal management, extends battery life, and reduces overall energy consumption.

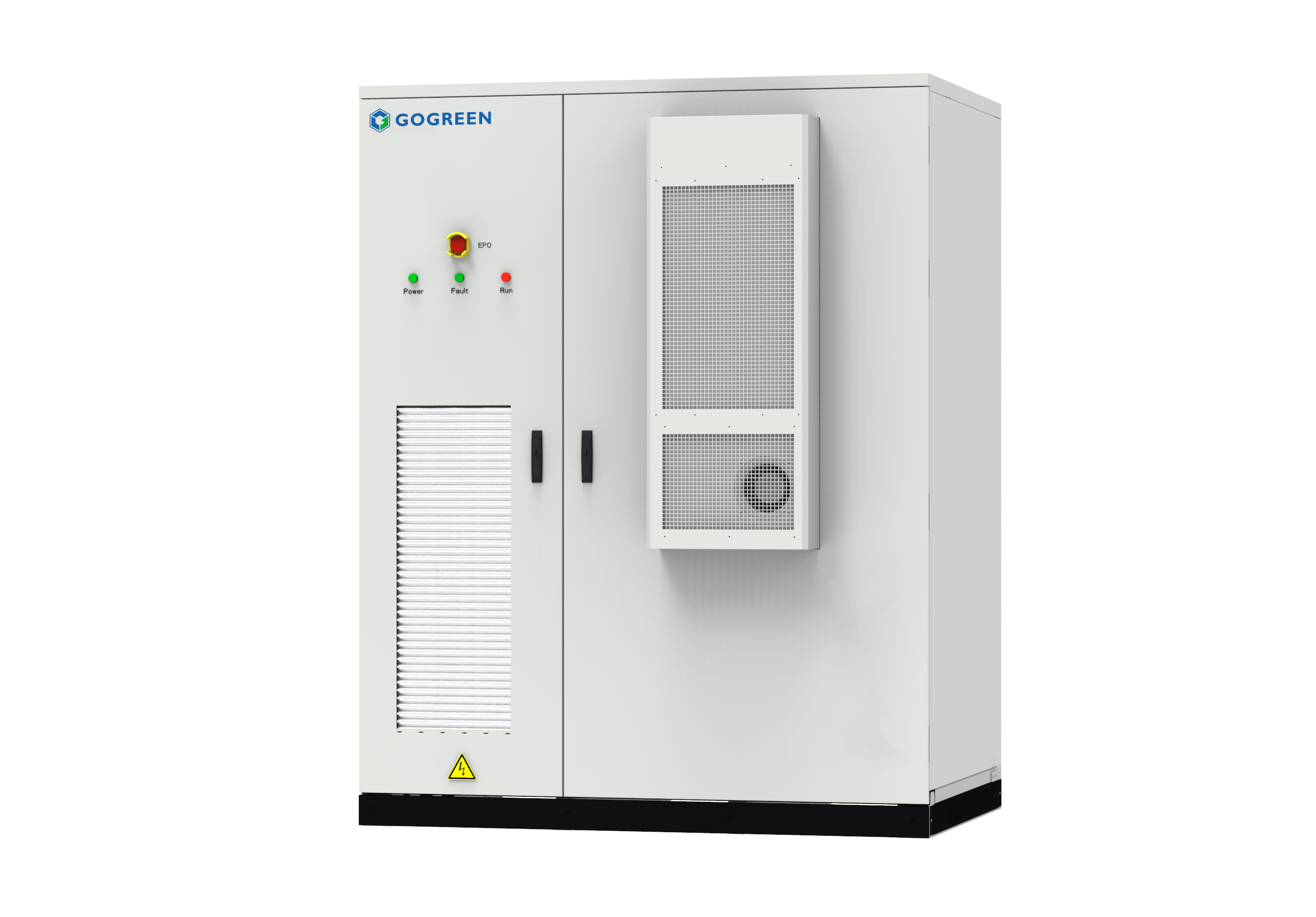

  • Air-cooled Cabinet
  • Liquid-cooled Cabinet

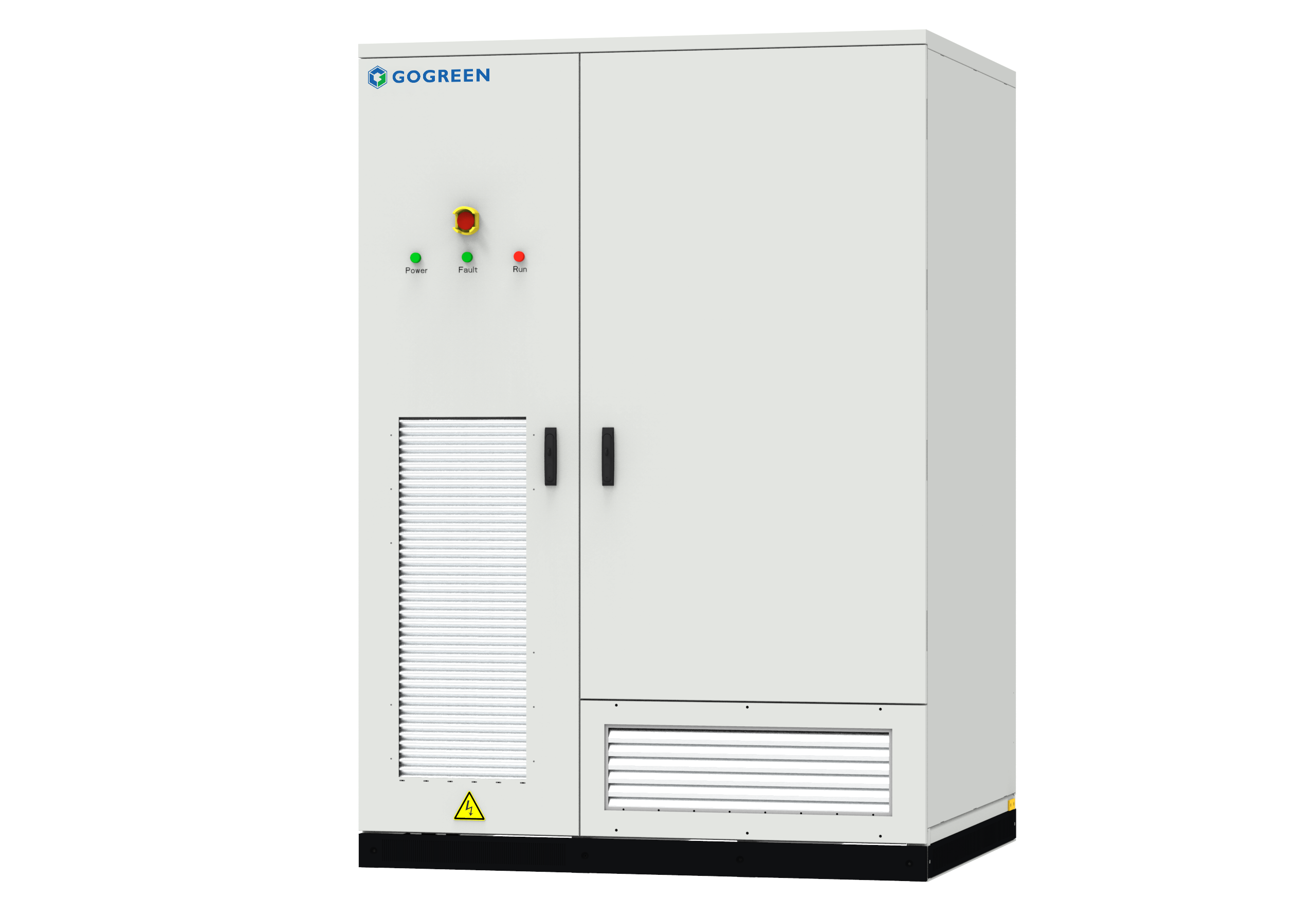

  • Outdoor Cabinet Energy Storage System

    100 kWh/215 kWh/253 kWh/232 kWh/261 kWh

    Download
//TECH spec

Specifications

  • C&I All-in-One Cabinet Energy Storage System

G-E Cube-50C G-E Cube-100C G-E Cube-100CL G-E Cube-125C G-E Cube-125CL
Battery Parameters
Battery rated capacity 100 kWh215 kWh232 kWh253 kWh261 kWh
Battery rated voltage 844.8V768V832V806.4V832V
Battery Voltage range 739.2V~950.4V672V~864V728V~936V705.6V~907.2V728V~936V
Battery type LFP
Cell capacity 120Ah280Ah314Ah
Max.charging/discharging power 1P0.5P0.5P/1P0.5P0.5P
Max.charge/discharge current 120A140A140A157A157A
Photovoltaic Parameters
Rated power 50 kW100 kW
PV open-circuit voltage 250V~719V250V~652V250V~708V250V~685V250V~500V
PV Max. current 160A160A*2
MPPT quantity 12
AC Parameters
Rated AC power 50 kW100 kW125 kW
Rated AC current 72A144A180A
Rated AC voltage 400V，3 W+N+PE
Rated AC frequency 50/60 Hz
THDi ＜3（Rated power）
Power factor -1 (leading) to +1 (lagging)
THDv <3% (linear load)
General Parameters
Protection level IP54IP55
Isolation mode Isolation transformer
Shutdown self-discharge ＜0.1% Rated power (Without transformer)
Display LCD
Relative humidity 0 ~ 95% (No condensation)
Noise ＜78 dB
Ambient temperature -25℃ to +60℃ (Derating Above 45℃)
Cooling mode Intelligent Air-cooledIntelligent Air-cooledIntelligent Air-cooledIntelligent Air-cooledLiquid-cooled
Altitude 3000m (>2000m derating)
Communication interface CAN/Ethernet/485
Dimension (W*D*H) 1300*1000*2100 mm1800*1200*2300 mm1612*1350*2300 mm1800*1200*2300 mm1600*1350*2300 mm
Weight (approx.) 2100 kg3100 kg3025 kg3560 kg3330 kg
Certification/Compliance UN38.3, UN3536, IEC 61727, IEC 62116, EN 62109, IEC 62477, IEC 62933, EN 62310, IEC 62619, IEC 63056, EN IEC 61000, EN/IEC 62920
//faqs

You Ask
We Answer

Still have questions?
Don't hesitate to contact our experts!

Contact Us
What is a C&I battery energy storage system?
Commercial and industrial (C&I) battery storage systems are designed specifically for industrial and commercial applications. Featuring a modular design, they offer flexible voltage and capacity configurations to meet diverse energy demands. These systems help reduce electricity costs by managing peak and off-peak usage, while also serving as backup power during outages. Additionally, C&I renewable energy storage supports grid stability, enables participation in electricity spot markets, and provides ancillary services.
How does a battery energy storage system work?
Commercial and industrial energy storage systems store and distribute electricity through battery charging/discharging, energy management, and power conversion. They help lower electricity costs, improve energy efficiency, and enhance power supply stability.
What is the cost of battery energy storage systems?
The cost of C&I energy storage solutions varies due to factors such as EPC costs and system equipment costs, including battery cells, PCS, BMS, EMS, cabinet, fire protection, and electrical components. Key cost drivers include system scale—larger systems (10MWh+) benefit from lower unit prices—and regional differences, as land and labor costs in major cities can increase total costs by 10–20%. Despite these variations, energy storage offers strong ROI through peak-valley arbitrage (a 2MWh system typically sees a 2–3 year payback) and electricity savings via peak shaving and load shifting.
